DIY Floorboards (Jul 10)

A while ago I did a temporary fix on the driver's footwell when I found the wet, rotten soundproofing under the carpet, by filling it with some light weight foam and putting a board on top. Last summer I finally got round to doing a proper job by making some wooden floorboards like those found in the cup cars. Here's a pic of friend's (Ian Reynolds) cup car floor board:



First job was to get the seats out, remove the carpet and everything else in the foot wells. I could then get to work on making a template from cardboard before breaking out the jigsaw on some 6 mm plywood. That was followed by a good coating of yacht varnish:



Here's a piece of the old soundproofing next to one of the new floorboards. The sound proofing pieces weighed 3.5 Kg each and the replacement boards just 2 Kg each:

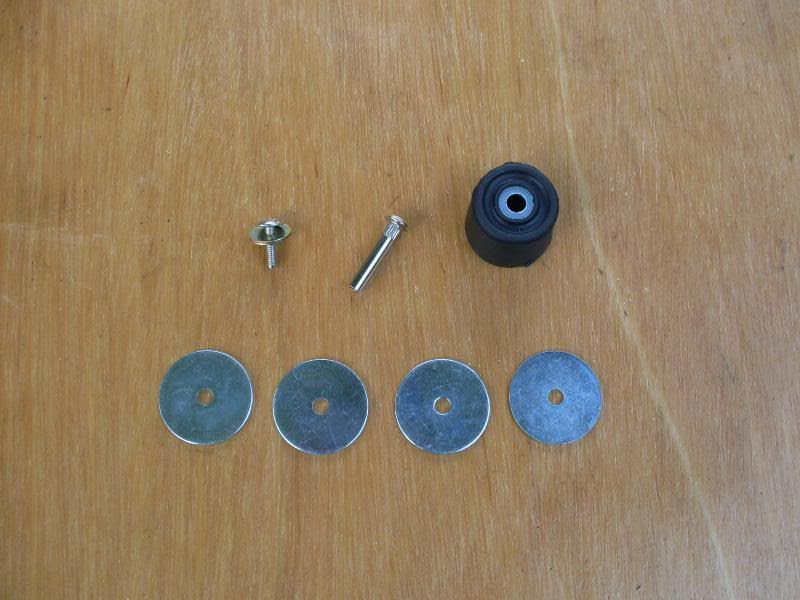

Whilst the boards would be screwed onto the raised beams in the footwell, they also needed to have a support in the deep part. So I came up with a door stop, some repair washers as spacers and bolted these to the boards using one of those two piece bolts that are used to join kitchen units together:





To fit the boards I simply unscrewed the press stud (you can see it just forward of the seat) and then drilled another hole in that same floor beam nearer the pedal box. Then I just used a couple of self-tapping screws and washers to fix the boards in place. Nb. The door stop was located on each board so that it settled on the slightly raised part of the floor (again see pic below).



Passenger floor board fitted:



Driver's side:



Here's my new co-driver checking out one of the seats while it was out of the car!



Of course, it's possible to buy even lighter ready made floor boards (Rennline make them) but since they're optimized for LHD cars, I wasn't sure if they would fit my RHD car. Besides which, the total cost of making my own was less than 20 quid.

The floorboards generated a lot of interest on the 964 Rennlist forum which lead to one of the guys (Thomas from Sweden) sorting out some replica cup car brackets (to replace the doorstop foot) and washers. So I subseqently (Mar 2011) modified the boards to use these instead:

I decided to glue my brackets in and because I want to keep the carpets I pulled up the carpet and cut a slot in the sound proofing so that I could glue the bracket to the tunnel:



Here's the driver's side bracket in place, complete with a rivnut installed for it to receive the floor board.



Here's the hand tool used to put the rivnuts (popnuts) in the brackets and the raised floorboard.



And here's how the passenger side board looks with the new washers fastening in place.

Centre Console Lights (Jul 10)

Since I'd been chasing electrical fixes I thought it was time to get the back lighting in the centre console working. It had never lit up since I had the car.

Inside the console there is a plug in board with three low wattage bulbs. These must have expired many moons ago. Porsche recommend a replacement board (no doubt at a ridiculous price) to fix this rather than providing new bulbs. Rather than doing this I copied other peoples' approaches of replacing the tiny filament bulbs with LEDs. So I taught myself how to de-solder the old bulbs and solder in 12V resistor LEDs in their place:



So now I have little glowing symbols on the console at night:

Fuel pump cover and doors (Jul 10)

Replacing the fuel pump cover was always one of those little jobs I'd aimed to get around to. It's one of those items you notice when you jack the car up and think, that's very rusty and I should change it. So I finally did! This pic shows the old one removed and the new one ready to go on:



Next up was to try and solve the intermittent central locking problem that had gradually got worse over the last twelve months or so. It had got to the point that I had to use the key to lock/unlock. On consulting some other 964 owners the general consensus was that it would be caused by the door lock actuators or micro-switches in the handles. So everything was stripped down cleaned, tested and replaced:

One of the actuators:



A dirty door handle after removing:



Handle with microswitch removed for cleaning:



While I was at it I thought it was best to change the door membranes. The pic below shows how they had been butchered and re-taped up many times.



New membranes in their packaging (nb. the roll at the bottom is a rip off version sold on ebay which turned out to be of no use at all) and one in the process of being fitted:





After sorting out the doors, the central locking problem remained. In the end I found that the problem was a faulty central locking relay (old one below) which when changed, cured the issue.
